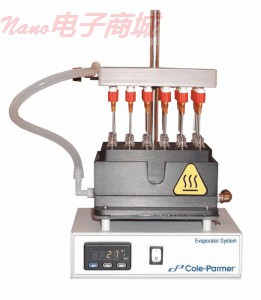

Cole-Parmer 099AEV2012ST 加熱蒸發器/集中器

Cole-Parmer 099AEV2012ST 加熱蒸發器/集中器

提供平等的氣流速度更快，一致的樣品揮發

經濟,可靠蒸發于一個緊湊的儀器

型號可容納不同大小的試管和微孔板

迅速蒸發常見的有機溶劑，制藥，環保，HPLC，GC，和一般研究中的應用的理想選擇。針形閥控制到均衡器的歧管，它提供了相等的氣體流量和蒸發均勻，以每孔中的氣體的流動。針型閥，確保控制多個樣品的快速濃度。每根針是由15號不銹鋼帶高度調節方便，以適應各種尺寸的樣品，加熱蒸發器/集中器牢固地固定住8到24個樣品瓶，

可容納12管-直徑16毫米。單位也可處理環保局小瓶。LED顯示屏提供溫度讀數精度為±0.25％。單位包括加熱塊，以確保更快地蒸發。確保樣品的溫度保持前加熱氣體樣品引入歧管燃?xì)獠膳x項。單位包括集成控制加熱器，樣品架，1.5“L 15號針頭。

產品規格

總持倉

20

浴溫

室溫至212°F（100°C）

溫度控制精度

0.25％

顯示

4位LED

功率（赫茲）

50/60

使用溫度范圍

室溫至212°F（100℃）

尺寸

7.5“寬x 5.5”深x 5“高

電容式

加熱蒸發

電源（VAC）

120

生產編號

099AEV2012ST

品牌

科爾 - 帕默

Indivdual needles provide equal flow of gas for faster, consistent evaporation of samples

Economical and reliable evaporation in a compact instrument

Models available to accommodate different-sized tubes and microwell plates

Rapidly evaporate common organic solvents—ideal for pharmaceutical, environmental, HPLC, GCMS, and general research applications. Needle valve controls the flow of gas into the equalizer manifold, which provides equal gas flow and uniform evaporation to each well. Needle valves ensure control for fast concentration of multiple samples. Each needle is made from 15-gauge stainless steel with easy height adjustment to accommodate a variety of sample sizes.Heated Evaporator/Concentratorssecurely hold from 8 to 24 sample vials, and can accommodate tubes from 12- to 16-mm dia. Units also available for handling EPA vials. LED display gives temperature readout with an accuracy of ±0.25%. Units include a heating block to ensure faster evaporation. Manifold gas heating option ensures temperature of sample is maintained by heating the gas before introduction into sample. Units include integrated controlled heater, sample holder, and 1.5"L 15-gauge needles.
