Ismatec?ISM933C 標準速行星齒輪驅動的泵，16個通道，115/230 VAC

Ismatec?標準速行星齒輪驅動的泵，16個通道，115/230 VAC

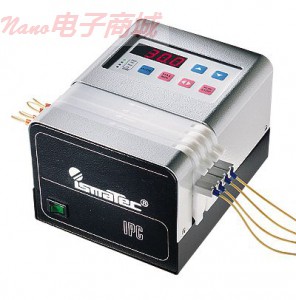

Ismatec? standard-speed planetary gear-driven pump, 16 channels, 115/230 VAC

獨特的行星傳動提供平穩，精確的流量和管壽命更長

這些多通道泵具有行星傳動驅動八個不銹鋼輥行星齒輪齊聲轉動平穩，精確的液體流量。泵運行時，四位LED顯示屏顯示馬達轉速％的最大轉速，（“A”型）和流速或rpm“B”型。使用MAX鍵瞬間增加吸或沖洗速度，而不會干擾你的編程設置。

油管尺寸和配方組合，以滿足您的應用程序。Click'n'go?墨盒設有自動閉塞簡化使用和可重復性的結果。將墨盒安裝在低脈動;高反壓在相反的方向。單獨訂購兩油管。

變速泵

通過6鍵鍵盤輸入泵速精確抽水，適合連續抽水

模擬輸入允許您遠程控制速度; TTL觸點閉合提供了啟動/停止，旋轉方向，并自動啟動控制。通過模擬輸出監控速度。

遠程控制功能：速度控制0?5,0至10 VDC，0至20，4至20 mA，啟動/停止，扭轉方向，通過觸點閉合（DB15Female）和自動啟動。分配器可以連接DB15female口：

變速可編程

分配泵適合連續抽或以下五種模式。

-流量：0.0007至35.43毫升/分鐘

-時間：0.1秒?999.9小時

-批次：設置分配容積延遲

-滴灌：程序返回步驟，以防止滴水

-毫升和μL

泵具有模擬輸入和輸出控制，以及通過計算機RS-232接口遠程控制。

遠程控制性能：

RS-232控制所有操作功能（DB9 male），0至5 VDC，0至10 VDC，0至20 mA，4至20 mA，用于啟動/停止和自動啟動通過觸點閉合（DB15 male）;腳踏開關（三針DIN端口）。

通過模擬輸出監控速度，數字泵通過6鍵鍵盤輸入泵的速度，精確抽水，適合連續抽水。模擬輸入允許您遠程控制速度; TTL觸點閉合開始/停止，旋轉方向，自動啟動控制。通過模擬輸出監控速度。

ISMATEC-REG TM ISMATEC SA

Unique planetary drive provides smooth, precise flow and longer tubing life

These multichannel pumps feature planetary gears that drive eight stainless steel rollers in unison for smooth rotation and accurate liquid flow. The four-digit LED display shows rpm or percent of maximum rpm when pump is running (“A” model) and flow rate or rpm on “B” model. Use the MAX button to instantly increase speed for priming or flushing without disturbing your programmed settings.

Combine tubing sizes and formulations to suit your application. Click’n’go? cartridges feature automatic occlusion for simplified use and reproducible results. Install cartridges in one direction for low pulsation; in opposite direction for higher counter pressure. Order two-stop tubing separately.

A: Variable-Speed Pumps

Enter pump speeds via the 6-button keypad for precise pumping—ideal for continuous pumping.

Analog inputs allow you to remotely control speed; TTL contact closure provides start/stop, rotation direction, and autostart control. Monitor speed via analog output.

Remote control capabilities: 0 to 5, 0 to 10 VDC, 0 to 20, 4 to 20 mA for speed control, start/stop, reverse direction, and autostart via contact closure (DB15 female). Dispenser may be attached for DB15 female port.

B: Variable-Speed Programmable

Dispensing Pumps Ideal for continuous pumping or for dispensing in any of five modes:

— Flow rate: 0.0007 to 35.43 mL/min

— By time: 0.1 seconds to 999.9 hours

— Batches: set delay between dispensed volumes

— Drip-free: program back-steps to prevent drips

— Volume in mL and μL

Pumps feature analog input and output controls, as well as an RS-232 interface for control by a computer.

Remote control capabilities: RS-232 to control all operating functions (DB9 male); 0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA for start/stop and autostart via contact closure (DB15 male); footswitch(three-pin DIN port). Monitor speed via analog output.Digital Pumps let you enter pump speeds via the 6-button keypad for precise pumping—ideal for continuous pumping. Analog inputs allow you to remotely control speed; TTL contact closure provides stat/stop, rotation direction, and autostart control. Monitor speed via analog output.

ISMATEC—Reg TM Ismatec SA
