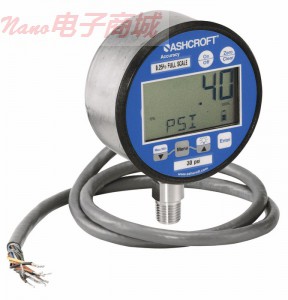

Ashcroft 30-2274-SD-02L-XAO-XU1-XEN-30IHGV/15# 數字衛生計
Operate with battery, 4 to 20 mA, or in- line 12 to 36 VDC
In-line powered unit acts as gauge, transducer, and switch
Intrinsically- safe IP65 case
Easy to read five digit display
Digital industrial gauge is perfect for pharmaceutical and biotech with its .25% terminal point accuracy. The multi-functionality of the gauge is great for chemical, pulp and paper, wastewater, and filtration processes, using local indication with the 4 to 20 mA output and switching options. Switch is rated for 125 VAC, 0.5 amp. Because the unit is digital, the switching option has unlimited deadband throughout the range of the gauge, and gives the unit superior set point flexability. Loop and in-line gauges have output signals that enable monitoring and control from remote areas such as control rooms or enclosures. Gauge range is vacuum to 20,000 psi.
Quarter percent accuracy includes linearity, hysteresis, repeatability, and termina
| Product Type |
Digital industrial gauges |
| Media compatibility |
any media compatible with 17-4 and 316 stainless steel |
| Wetted materials |
17-4 and 316 stainless steel |
| Accuracy |
±0.25% full scale |
| Unit of Measurement |
psi, " H2O, ft H2O, mPa, mBar, kPa, kg/cm2, Bar, " Hg, mm Hg |
| Resolution |
0.00001" Hg |
| Output |
12 to 36 VDC, single SPDT switch |
| Range |
30" Hg to 15 psi |
| Max pressure (" Hg) |
30 |
| Process connection |
1/4" NPT(M) |
| Power |
12 to 36 VDC, 1 amp |
| Dial size (" Dia) |
3 |
| Case |
stainless steel |
| Lens material |
polycarbonate |
| CE Compliance |
Yes |
| Display |
5-digit LCD, 0.88" high |
| Make |
Type2274 |
| Brand |
Ashcroft |
| Model |
22743.0 |
| Manufacturer number |
30-2274-SD-02L-XAO-XU1-XEN-30IHGV/15# |
電池，4至20 mA，或在12至36 VDC操作
線路供電單元作為壓力表，換能器，并切換
本質安全I(xiàn)P65外殼
易于閱讀的5個數字顯示
數碼工業壓力表是完美的制藥和生物技術與終點精度.25％。壓力表的多功能性是很大的化工，紙漿和造紙，廢水和過濾過程，使用本地的4至20 mA輸出和開關選項指示。開關的額定電流為125伏，0.5安培。因?yàn)楸緳C(jī)是數字的，則開關選項有無限的死區，整個壓力表的范圍內，并給出優于設定點的flexability的單位。循環和在線儀表的輸出信號，使來自偏遠地區的監測和控制，如控制室或機柜。壓力表的范圍為真空至20,000 psi。
0.25％的精度包括線性，滯后，重復性和端接
| 產品類型 |
數字工業儀表 |
| 介質兼容性 |
任何媒體兼容17-4和316不銹鋼 |
| 接液材料 |
17-4和316不銹鋼 |
| 準確性 |
±0.25％滿量程 |
| 計量單位 |
PSI，“H 2 O，英尺? 2 O，MPA，毫巴，千帕，公斤/厘米2，酒吧，汞，毫米汞柱 |
| 決議 |
0.00001“汞 |
| 產量 |
12至36 VDC，單SPDT開關 |
| 范圍 |
30“汞柱到15磅 |
| 最大壓力（汞） |
30 |
| 過程連接 |
1/4“NPT（M） |
| 功率 |
12至36 VDC，1安培 |
| 表盤尺寸（直徑） |
3 |
| 案 |
不銹鋼 |
| 透鏡材料 |
聚碳酸酯 |
| 符合CE認證 |
是 |
| 顯示 |
5位LCD，0.88“高 |
| 使 |
Type2274 |
| 牌 |
阿什克羅夫特 |
| 模型 |
22743.0 |
| 制造商數量 |
30-2274-SD-02L-XAO-XU1-XEN-30IHGV/15＃ |
