Ismatec?ISM795 緊湊型模擬泵，2個通道，1.6至每分鐘160轉，0.004至34毫升/分鐘，115/230 VAC

Ismatec?緊湊型模擬泵，2個通道，1.6至每分鐘160轉，0.004至34毫升/分鐘，115/230 VAC

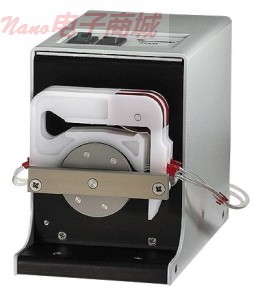

Ismatec compact analog pump, 2 channels, 1.6 to 160 rpm, 0.004 to 34 mL/min, 115/230 VAC

節省空間設計四個泵通道，而無需占用太多的工作臺空間

迷你盒式設計，可快速更換甭管

這些泵配備了新設計的彈簧加載CLICK'N'GO?迷你盒最佳的咬合沒有調整。墨盒接受不同尺寸的管和泵頭上，僅需要按一下就可以按在泵頭上。。自潤滑，PTFE填充尼龍輥提供穩定的流量減少油管磨損。反向流動方向翻轉的開關。

選擇雙通道或四通道泵;八輥泵即使流動也很平穩。所有的泵包括迷你盒每個通道和一個6英尺長電源線插頭。

選擇可調可選的迷你盒.每個通道手動變壓。速度可調1％（0?99％）。遠程控制速度與模擬輸入信號（0至5 VDC，0至10 VDC，0至20 mA或4至20 mA）;通過觸點閉合（DB15內孔）啟動/停止泵或改變流向;

CLICK'N'GO—TM Ismatec SA

ISMA TEC-REG TM ISMATEC SA

Space-saving design provides up to four pumping channels without using much benchtop space

Minicartridge design allows quick tubing changes

These pumps feature newly designed spring loaded CLICK’N’GO? minicartridges that provide optimum occlusion with no adjustment. Cartridges accept different sizes of tubing and just snap into place on the pump head. Self-lubricating, PTFE-filled nylon rollers provide consistent flow with reduced tubing wear. Reverse your flow direction with the flip of a switch.

Select two- or four-channel pumps; eight roller pumps provide smooth, even flow. All pumps include minicartridges for each channel and a 6-ft cord with plug. Order extra minicartridges below.

Choose the optional minicartridges with adjustable occlusion to manually vary pressure on each channel.Speed is adjustable in 1% steps (0 to 99%). Control speed remotely with an analog input signal (0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, or 4 to 20 mA); start/stop pump or change flow direction via contact closure (DB15 female);

CLICK'N'GO—TM Ismatec SA

?

ISMA TEC—Reg TM Ismatec SA
