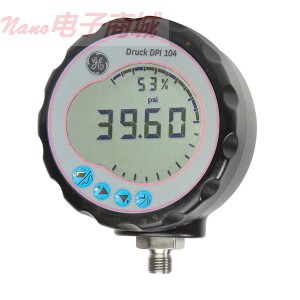

Druck DPI 104 30PSIA 1/4NPT 數字測試壓力表

Druck DPI 104 30PSIA 1/4NPT 數字測試壓力表

作為測試和測量儀器在使用過程中進行監測和控制，

標準本質安全版本

0.05％滿量程精度

11個可選擇的壓力單位

IDOS兼容??RS232串行接口

測量儀是一種微處理器控制的精密測試測量儀，該測量儀可靠，經濟，適用范圍廣的壓力感測應用。測量儀具有±0.05％的滿量程精度，最小/最大，去皮，和報警功能，模擬信號輸出，壓力切換測試功能。測量儀可以作為一個獨立的過程指示，或者使用手動泵作為壓力參考。這種壓力計有一個非常獨特的功能，用戶可調節安裝位置，。此壓力計的外殼周圍的壓力，裝修面板可旋轉，最佳可見度任何方向旋轉320°。除了數字壓力指示，壓力表有一個圓形的20段條形圖快速快速直觀地表示。該指數也有能力提供1到5伏直流電輸出控制和指示。

Use in process monitoring and control and as a test and measurement instrument

Standard and Intrinsically-safe versions

0.05% full-scale accuracy

Eleven selectable pressure units

IDOS compatible and RS232 serial interface

Gauge is a microprocessor-controlled precision test gauge that is a reliable and economic solution for a wide range of pressure sensing applications. Gauge features ±0.05% full-scale accuracy, min/max, tare, and alarm functions, analog output, and a pressure switch test function. Gauge can be used as a stand-alone process indicator or as a pressure reference for use with hand pumps.A very unique feature of this guage is the adjustable mounting positions that the user can have. The housing of this gauge rotates 320° around the pressure fitting—faceplate can be rotated in any direction for optimum visibility. In addition to the numeric pressure indication, gauge has a round twenty-segment bar graph for quick quick visual indication. The gauge also has the capability of providing a 1 to 5 VDC output for control and indication.
