Masterflex 77200-62 L / S易裝II泵頭為高性能精密管材，固定閉塞，SS轉子

Masterflex L / S易裝II泵頭為高性能精密管材，固定閉塞，SS轉子

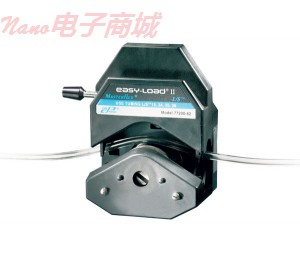

Masterflex L/S Easy-Load II pump head for high-performance precision tubing, fixed occlusion, SS rotor.

自動保留持有管安全，無需手動調整只需安裝油管，啟動泵

四輥轉子可以提高性能和機械穩(wěn)定性,同時減少壓力脈動。

改進閉塞床幾何延長油管的使用壽命。

聚苯硫醚（PPS）外殼采用不銹鋼（SS）或冷軋鋼（CRS）轉子CRS轉子外殼更經(jīng)濟，而SS提供了更強的耐久性和耐化學性。

型號77201-62可調閉塞讓您選擇松動閉塞管延長壽命或高壓增強閉塞

精密泵管每個泵頭接受管尺寸L / S ?15，L / S ? 24，L / S ? 35，L / S ? 36。實現(xiàn)流速為1.7?2900毫升/分鐘（1?600轉）。

這些泵頭接受四種高性能精密管材尺寸。高性能精密管材比高精度管管壁厚，可以更好的產(chǎn)生壓力，對粘性液體更大吸力。

包含：單通道安裝硬件和15“（38厘米）長的硅膠泵管。

最新信息：使用單個或多個通道，您無需從您的驅動器上去除易裝卸泵頭就可改變每個通道的管子。

Automatic retention holds tubing securely in place with no manual adjustment—just load the tubing and start the pump

Four-roller rotor improves pressure performance and mechanical stability while reducing pulsation.

Improved occlusion bed geometry lengthens tubing life.

Polyphenylene sulfide (PPS) housing with either stainless steel (SS) or cold-rolled steel (CRS) rotor—choose CRS for economy or SS for greater durability and chemical resistance.

Model 77201-62 with adjustable occlusion gives you the option of loosening occlusion for longer tubing life or increasing occlusion for higher pressure.

Each pump head for high-performance precision pump tubing accepts tubing sizes L/S? 15, L/S? 24, L/S?35, and L/S? 36. Achieve flow rates of 1.7 to 2900 mL/min (1 to 600 rpm).

These pump heads accept the four high-performance precision tubing sizes. High-performance precision tubing has a thicker wall than precision tubing enabling better pressure generation, greater suction lift, and greater ability to pump viscous fluids.

What's included: single-channel mounting hardware and a 15'' (38-cm) length of silicone pump tubing. For stacking multiple heads (up to the specified limits of your drive) order two- three- or four-channel hardware separately.

Hot Tips:

With single or multiple channels, you can change tubing in each channel without removing the EASY-LOAD II pump head(s) from your drive.
