Multiwash III 12端口同軸集成塊洗板

Multiwash III 12端口同軸集成塊洗板

只需按一個按鈕，按需漂洗功能完善設備清潔

快速連接管接頭允許在單位時間內完全運作

處理全方位的分析類型，從最輕柔洗凈到最激進的ELISA

適合用于執行各種程序，包括實驗室 - 凝集試驗、細胞毒性試驗、ELISA，EIA，FIA和LIA測試。洗衣機擁有易于清洗的程序例程，臀部洗凈，掃地橫向吸出，只能免除和分泌物功能，并溢出清洗的持續配藥，同時吸出進行徹底的清洗頂部。通過編程和存儲程序，可以七種不同模式之間的一鍵式切換。

墊圈在不到兩分鐘進行在一個完整的96孔板300微升三周期洗滌，洗衣機是可以運行多達10洗滌周期，可以控制分配壓力和浸泡時間。該洗衣機還設有一個浮動歧管，調整以匹配每塊板，并允許洗衣機執行特殊的測試程序。額外抽吸調整為水平和垂直兩個針位置可以存儲在單獨的程序。

水平和垂直獨立調整很好地被容納任何形狀，洗衣機具有洗滌和漂洗的各2升水庫容量。潤濕的材料包括玻璃，尼龍，PTFE?，不銹鋼，聚丙烯，Tygon?海豹，Delrin?聚，聚乙烯和Santoprene。措施11'W X81/2'H X145'D。各單位均已通過認證與CAS std c 22.2 1010.1。

包含的內容：

歧管（除13054-34），滑連接器，水庫套件，保險絲，沖洗條，防塵罩，操作手冊，快速入門指南和兩根電源線（美國標準和歐洲）。單獨訂購額外的歧管。

技術指標

產品類型                  板墊圈

全板加工                  120秒

浸泡時間                  0至999秒

歧管型                    同軸

洗滌周期                  10

精度                      +/-300微升3％

品牌                      Multiwash

出廠編號                  820-05（MULTIWASH3）

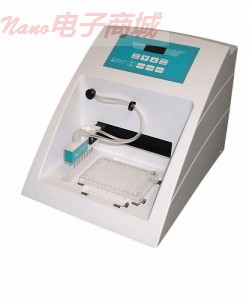

Multiwash III Plate Washer with 12-Port Coaxial Manifold

Rinse-on-demand feature for complete system cleaning at the touch of a button

Quick-connect fittings allow unit to be fully operational in minutes

Can handle full range of assay types from the most gentle wash to the most aggressive ELISA

Ideal for labs performing a variety of routines including -- agglutination tests; cytotoxicity tests; and ELISA, EIA, FIA, and LIA tests. Washer features easy-to-program wash routines, bottom washing, sweeping crosswise aspiration, dispense only and aspirate only functions, and overflow washing for continual dispensing while aspirating off the top for a thorough wash. By programming and storing routines, you can switch between seven different modes at the touch of a button.

The washer performs a 300-μL three-cycle wash on a full 96-well plate in less than two minutes. Washer is can run up to ten wash cycles. You control the dispense pressure and soak time. The washer also features a floating manifold that adjusts to match each plate and allows the washer to perform special test procedures. Extra aspiration adjustment for both horizontal and vertical needle positions can be stored in individual programs.

Independent adjustments of horizontal and vertical allow any shape well to be accommodated. Washer has a wash and rinse reservoir volume of two liters each. Wetted materials include glass, nylon, PTFE^?, stainless steel, polypropylene, Tygon^?, Delrin^?, polyethylene, and Santoprene^?. Measures 11'W x 81/2'H x 145'D. All units are also certified with CAN/CAS std c 22.2 No. 1010.1.

What's Included:
manifold (except 13054-34); slip connectors; reservoir kit; fuse; rinse strips; dust cover; operation manual; quick-start guide, and two power cords (U.S. standard and European). Order additional manifolds separately.

Specifications
Product Type	Plate Washers
Full plate processing time	120 seconds
Soak time	0 to 999 seconds
manifold type	Coaxial
Wash cycles	10
Accuracy	+/- 3% at 300 uL
Brand	Multiwash
Manufacturer number	820-05(MULTIWASH3)

產品規格
產品類型		洗板機
全板加工時間		120 秒
浸泡時間		0 to 999 秒
歧管型		同軸
洗周期		10
精度		+/- 3% at 300 uL
品牌		Multiwash
型號		820-05(MULTIWASH3)
