ThermoProbe TP7C-050-SW-SM 測溫TP7C線軸型50FT標準探頭

ThermoProbe TP7C-050-SW-SM 測溫TP7C線軸型50FT標準探頭

?

精確的溫度測量散裝液體儲罐的本質安全的溫度計

危險玻璃溫度計的理想替代品

可靠和穩定的RTD傳感器技術

精確度±0.2°F從32到200°F（0到100°C）

易于使用面板控制，校準和調整

電纜標記，每5英尺

包括4點NIST可溯源校準報告

測溫器的設計，現場使用的堅固耐用，便攜式高精度數字溫度計，涉及石油和化工產品的體積-溫度計量。允許電纜探頭，便于檢索和方便的設計省去了把探頭表面采取多個讀數。典型的應用包括監護權轉移，水箱，管道，船舶，軌道車，駁船，水罐車和證明系統本質安全型儀表制造材料都是免疫石化無火花。探針組件構造一個非常靈活的，除靜電，芳族聚酰胺纖維增強，不沾電纜和不銹鋼元件，大型的液晶顯示器（LCD）的溫度，加上箭頭指示的方向上的溫度讀數是否已達到穩定。可以記錄溫度穩定，在眾多的液體運行的平均水平，后來顯示的記錄。進階功能，可通過一個用戶友好的菜單，包括最小/最大/平均閱讀，讀出完整，光控制背光，可選（型號TP7 °F /°C）的度量單位，電池狀態，自動關閉。設有高強度塑料外殼和內置的探頭電纜卷軸快速和容易檢索。包括： 2節AA電池和NIST可溯源校準報告由制造商提供。

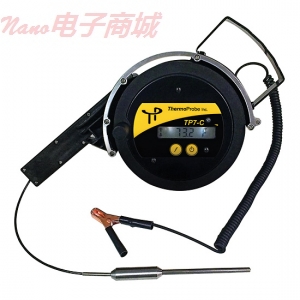

ThermoProbe TP7C Spool-type 50ft Std Probe

Intrinsically safe thermometer for accurate temperature measurement in bulk liquid storage tanks

Ideal alternative to hazardous glass thermometers

Reliable and stable RTD sensor technology

Accuracy ±0.2°F from 32 to 200°F (0 to 100°C)

Easy to calibrate and make adjustments using faceplate controls

Cable marked every 5 feet

Includes 4-point NIST traceable calibration report

The ThermoProbe are designed as rugged, field-use, portable precision digital thermometers, involving volume-temperature gauging of petroleum and chemical products. Convenient design allows for easy retrieval of the cable probe and eliminates the need to bring the probe to the surface to take multiple readings. Typical applications include custody transfers, tanks, pipelines, ships, railcars, barges, tanker trucks, and proving systems.

Intrinsically safe meters are manufactured of materials which are both immune to petrochemicals and are nonsparking. The probe assembly is constructed with a very flexible, static-dissipating, aramid fiber reinforced, nonstick cable and stainless steel components.

Large LCD displays temperature, plus arrows indicate the direction of the temperature reading and whether stability has been reached. Stabilized temperatures can be logged at numerous liquid levels for a running average and later displayed for documenting. Advanced features, accessible through a user-friendly menu, include Min/Max/Avg reading, readout integrity, photosensor-controlled backlight, selectable (°F/°C) unit of measure, battery status, and automatic shut-off.
Model TP7 features a high-impact plastic case and a built-in reel for fast and easy retrieval of the cable with probe.
What's Included:
2 AA batteries and NIST traceable calibration report supplied by manufacturer.
